| Параметр | Значение |
| Общие характеристики | |
| Артикул | 83962 |
| MTTF | 140 a |
| Mission Time (T | 20 a |
| Diagnostic Coverage (DC) | 0 % |
| Operating voltage | 10 ... 30 V DC or 5 V DC ± 5 % (see "Output circuit" in the ordering information) |
| No-load supply current | max. 60 mA |
| Degree of protection | DIN EN 60529, IP66 DIN EN 60529, IP67 |
| Mass | approx. 2300 g (combination 1) approx. 2300 g (combination 2) |
| Voltage drop | < 4 V (push-pull, incremental) |
| Cable | &Empty; 10.2 mm, Radox 9 x 0.5 mm |
| Marking | I M2 Ex db I Mb |
| Output type | push-pull, incremental or RS 422, incremental (see "Output circuit" in the ordering information) |
| Vibration resistance | DIN EN 60068-2-6, 10 , 10 ... 2000 Hz |
| EU-type examination certificate | ZELM 14 ATEX 0519 X IECEx ZLM 14.0003X |
| Pulse count | max. 5000 |
| Load current | max. per channel 40 mA , short-circuit protected, reverse polarity protected (push-pull, incremental) max. per channel 20 mA , short-circuit protected, reverse polarity protected (RS 422, incremental) |
| Output frequency | max. 200 kHz |
| Rise time | 250 ns |
| De-energized delay | 250 ns |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation |
| Emitted interference | EN 61000-6-4:2007/A1:2011 |
| Noise immunity | EN 61000-6-2:2005 |
| Combination 1 | housing: Stainless steel 1.4305 / AISI 303 flange: Stainless steel 1.4305 / AISI 303 shaft: Stainless steel 1.4305 / AISI 303 |
| Rotational speed | max. 6000 min |
| Moment of inertia | 400 gcm |
| Starting torque | < 5 Ncm |
| Axial | 110 N |
| Radial | 150 N |
| Shock resistance | DIN EN 60068-2-27, 100 , 3 ms |
| Directive 2014/34/EU | IEC 60079-0:2011 , EN 60079-0:2012+A11:2013 , IEC 60079-1:2014 , EN 60079-1:2014 , IEC 60079-31:2013 , EN 60079-31:2014 |
| L | 1.6 E+9 at 3000 rpm |
| Detection type | photoelectric sampling |

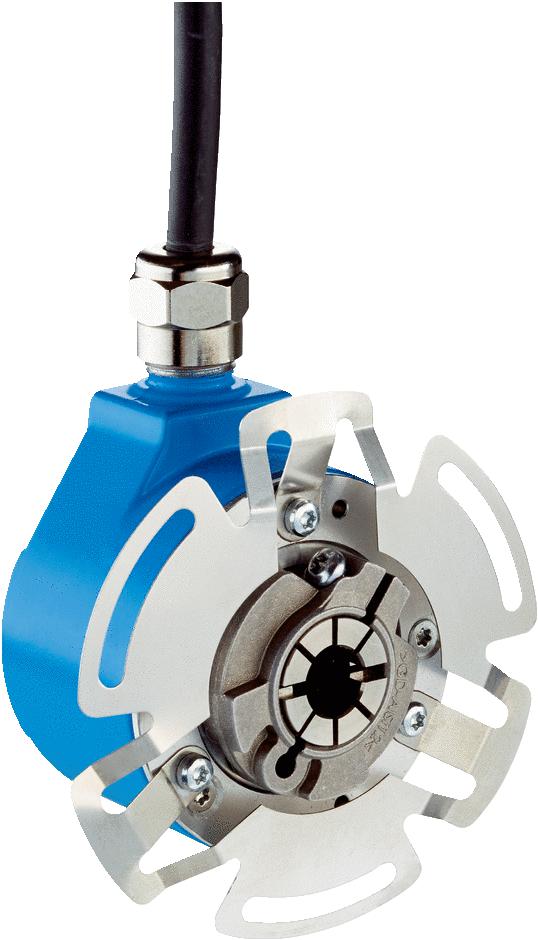

| Device type | Incremental rotary encoder |
| Duty cycle | 1/2 ± 20 % |
| Phase position A to B | 90 ° ± 18 ° |
| Gas Ex-area | -40 ... 70 °C (-40 ... 158 °F) |
| Dust Ex-area | -40 ... 70 °C (-40 ... 158 °F) |
| Combination 2 | housing: Stainless steel 1.4401 / AISI 316 flange: Stainless steel 1.4401 / AISI 316 shaft: Stainless steel 1.4401 / AISI 316 |
