| Параметр | Значение |
| Общие характеристики | |
| Артикул | 88482 |
| Operating voltage | 8 ... 32 V DC |
| UL approval | cULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. |
| Storage temperature | cable models: -30 ... 70 °C (-22 ... 158 °F) connector models: -30 ... 85 °C (-22 ... 185 °F) |
| Degree of protection | acc. DIN EN 60529 |
| Housing | nickel-plated steel |
| Mass | approx. 150 g , with cable |
| Relative humidity | 98 % , no moisture condensation |
| Measurement range | min. 0 ... 22.5 ° max. 65566 x 360 ° factory setting: 16 x 360" |
| Resolution | 17 Bit (13 bits/revolution) |
| Linearity error | ≤ 0.15 % |
| Cable | ∅6 mm, 4 x 2 x 0.14 mm , 1 m |
| Output type | analog voltage output or analog current output (see type code) |
| Load resistor | min. 5000 Ω (with voltage output) , min. 500 Ω (with current output) ; Max. value for supply voltage 8 V. For higher supply voltage lower load resistance can be used. |
| Vibration resistance | DIN EN 60068-2-6, 10 , 10 ... 1000 Hz |
| Connector | M12 connector, 5 pin |
| Input type | upper limit of measurement range |
| Default setting | rising ramp at ccw rotation |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
| Rotational speed | max. 12000 min |
| Moment of inertia | 30 gcm |
| Starting torque | < 3 Ncm |
| Axial | 20 N |
| Radial | 40 N |
| Shock resistance | DIN EN 60068-2-27, 100 , 6 ms |
| Operating temperature | cable, flexing: -5 ... 70 °C (23 ... 158 °F) cable, fixed: -30 ... 70 °C (-22 ... 158 °F) connector models: -40 ... 85 °C (-40 ... 185 °F) |
| Current consumption | typ. 15 mA (with voltage output) typ. 20 mA (with current output) |
| UL File Number | E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. |
| Detection type | magnetic sampling |
| Flange | Aluminum |
| Shaft | Stainless steel |

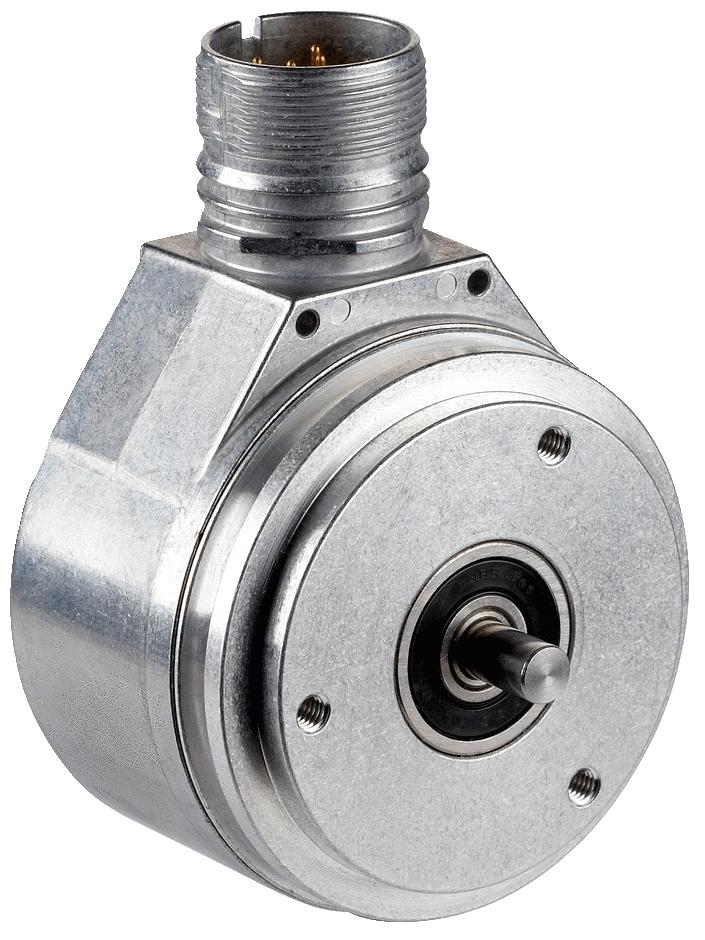

| Device type | Absolute encoders |
| High | 8 ... 32 V DC |
| Connection side | cable models: IP54 connector models: IP65 |
| Signal duration | min. 1 s |
| Shaft side | IP65 |
| Тип исполнения энкодера | Многооборотный |
