| Параметр | Значение |
| Общие характеристики | |
| Артикул | 76917 |
| MTTF | 480 a at 40 °C |
| Mission Time (T | 20 a |
| Diagnostic Coverage (DC) | 0 % |
| Operating voltage | 9 ... 30 V DC (with galvanic isolation) |
| UL approval | cULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Degree of protection | DIN EN 60529, IP65 or IP54 |
| Housing | nickel-plated steel |
| Mass | approx. 150 g |
| Power consumption | ≤ 1.2 W |
| Relative humidity | 98 % , no moisture condensation |
| Time delay before availability | < 250 ms |
| Interface type | CANopen |
| Transfer rate | min. 20 kBit/s , max. 1 MBit/s |
| Linearity error | ≤ ± 0.1 ° |
| Cable | ∅6 mm, 4 x 2 x 0.14 mm |
| Cycle time | ≥ 1 ms |
| Vibration resistance | DIN EN 60068-2-6, 20 , 10 ... 1000 Hz |
| Connector | M12 connector, 5 pin |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
| Rotational speed | max. 12000 min |
| Moment of inertia | 30 gcm |
| Starting torque | < 3 Ncm |
| Axial | 19 N |
| Radial | 44 N |
| Shock resistance | DIN EN 60068-2-27, 200 , 6 ms |
| Operating temperature | cable, flexing: -5 ... 70 °C (23 ... 158 °F), cable, fixed: -30 ... 70 °C (-22 ... 158 °F) connector models: -40 ... 85 °C (-40 ... 185 °F) |
| L | 1035 E+8 revolutions at 19/44 N axial/radial shaft load |
| UL File Number | E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. |
| Detection type | magnetic sampling |
| Flange | Aluminum |
| Shaft | Stainless steel |
| Axial offset | ± 0.3 mm static |

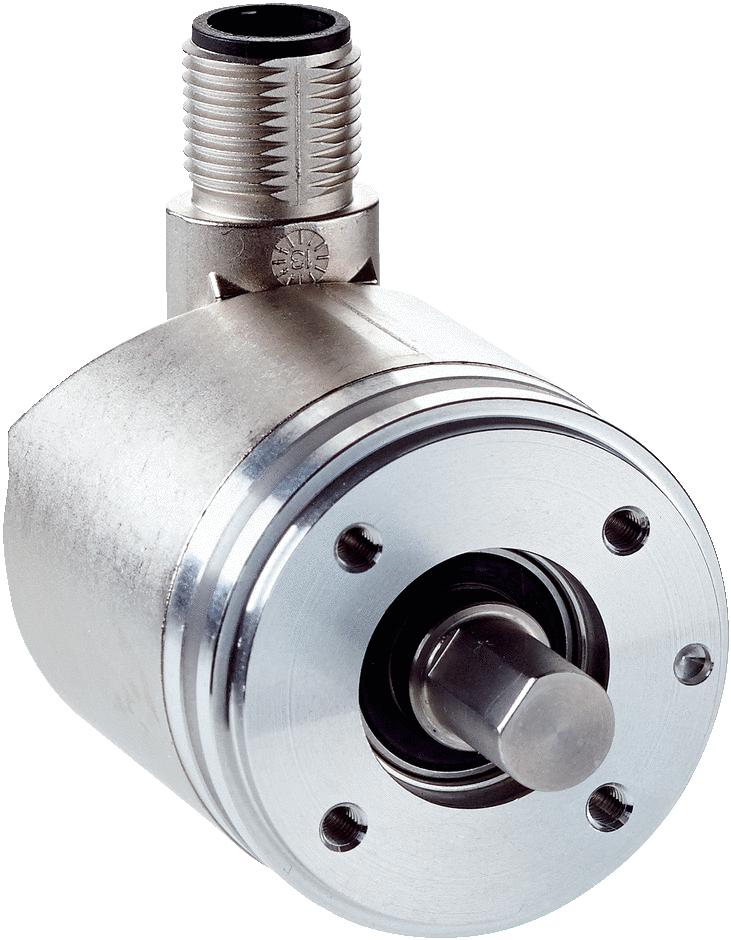

| Device type | Absolute encoders |
| Output code | binary code |
| Code course (counting direction) | adjustable |
| Standard conformity | DSP 406 |
| Single turn | up to 16 Bit |
| Multiturn | up to 15 Bit |
| Overall resolution | up to 31 Bit |
| Radial offset | ± 0.5 mm static |
| Тип исполнения энкодера | Многооборотный |
