| Параметр | Значение |
| Общие характеристики | |
| Артикул | 69675 |
| MTTF | 130 a at 40 °C |
| Mission Time (T | 20 a |
| Diagnostic Coverage (DC) | 0 % |
| Operating voltage | 10 ... 30 V DC |
| UL approval | cULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Degree of protection | DIN EN 60529, IP65, IP66, IP67 |
| Housing | Zinc plated steel, painted |
| Mass | approx. 300 g |
| Power consumption | approx. 4 W |
| Relative humidity | 98 % , no moisture condensation |
| Time delay before availability | < 250 ms |
| Interface type | PROFINET IO |
| Transfer rate | 100 MBit/s |
| Linearity error | ≤ ± 0.1 ° |
| Cycle time | ≥ 1 ms |
| Vibration resistance | DIN EN 60068-2-6, 10 , 10 ... 1000 Hz |
| Connector | Ethernet: 2 sockets M12 x 1, 4-pin, D-coded Supply: 1 plug M12 x 1, 4-pin, A-coded |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
| Rotational speed | max. 12000 min for IP65 max. 3000 min for IP66/IP67 |
| Moment of inertia | 50 gcm |
| Starting torque | < 5 Ncm |
| Axial | 24 N |
| Radial | 198 N |
| Shock resistance | DIN EN 60068-2-27, 100 , 6 ms |
| Operating temperature | -40 ... 70 °C (-40 ... 158 °F) for model without connection cover -40 ... 85 °C (-40 ... 185 °F) for model with connection cover |
| L | 5 E+8 revolutions at 24/198 N axial/radial shaft load |
| UL File Number | E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. |
| Detection type | magnetic sampling |
| Flange | Aluminum |
| Shaft | Stainless steel |
| Angle offset | ± 0.9 ° |
| Axial offset | ± 0.3 mm static |

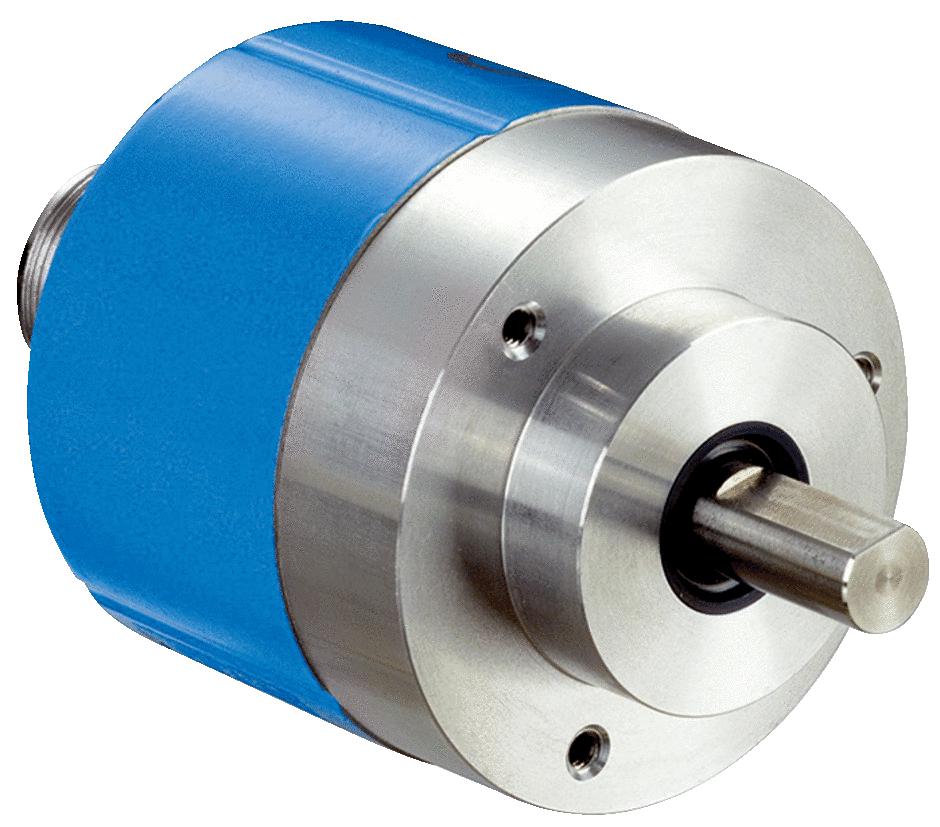

| Device type | Absolute encoders |
| Output code | binary code |
| Code course (counting direction) | programmable, cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending) |
| Single turn | up to 16 Bit |
| Multiturn | up to 14 Bit |
| Overall resolution | up to 30 Bit |
| Radial offset | ± 0.5 mm static |
| Тип исполнения энкодера | Многооборотный |
