| Параметр | Значение |
| Общие характеристики | |
| Артикул | 58963 |
| Материал | housing: powder coated aluminum flange: aluminum shaft: stainless steel |
| MTTF | 120 a |
| Mission Time (T | 20 a |
| Diagnostic Coverage (DC) | 0 % |
| Operating voltage | 10 ... 30 V DC , safe galvanic isolation per EN 50178 |
| UL approval | cULus Listed, General Purpose, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Degree of protection | DIN EN 60529, shaft side: IP64 (without shaft seal)/IP66 (with shaft seal) housing side: IP65 |
| Mass | approx. 700 g |
| Power consumption | max. 3 W |
| Relative humidity | 98 % , no moisture condensation |
| Interface type | Ethernet Powerlink |
| Transfer rate | 100 MBit/s |
| Vibration resistance | DIN EN 60068-2-6, 10 , 10 ... 2000 Hz |
| Tightening torque, fastening screws | max. 1.8 Nm |
| Connector | Ethernet: 2 sockets M12 x 1, 4-pin, D-coded Supply: 1 plug M12 x 1, 5-pin, A-coded |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
| Rotational speed | max. 12000 min |
| Moment of inertia | 30 gcm |
| Starting torque | ≤ 3 Ncm (version without shaft seal) |
| Shock resistance | DIN EN 60068-2-27, 100 , 6 ms |
| Operating temperature | -40 ... 79 °C (-40 ... 174.2 °F) |
| L | 1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load |
| Detection type | photoelectric sampling |
| Angle offset | ± 0.9 ° |
| Axial offset | static: ± 0.3 mm, dynamic: ± 0.1 mm |

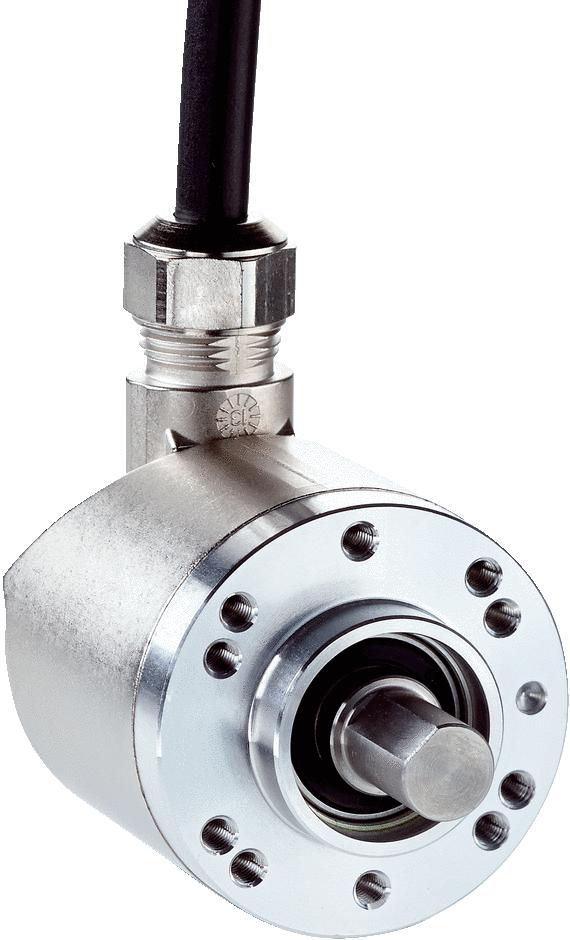

| Device type | Multiturn absolute encoder |
| Output code | binary code |
| Code course (counting direction) | programmable, cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending) |
| Single turn | up to 16 Bit |
| Multiturn | 14 Bit |
| Overall resolution | up to 30 Bit |
| Radial offset | static: ± 0.5 mm, dynamic: ± 0.2 mm |
| Linearity | ± 0.5 LSB (12 Bit) , ± 2 LSB (16 Bit) |
| Тип исполнения энкодера | Многооборотный |
