| Параметр | Значение |
| Общие характеристики | |
| Артикул | 51177 |
| Operating voltage | 4.5 ... 30 V DC |
| No-load supply current | max. 180 mA |
| UL approval | cULus Listed, General Purpose, Class 2 Power Source |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Degree of protection | DIN EN 60529, IP65 |
| Mass | approx. 300 g (combination 1) |
| Time delay before availability | < 250 ms |
| Interface type | SSI |
| Voltage drop | U - 2.5 V |
| Transfer rate | 0.1 ... 2 MBit/s |

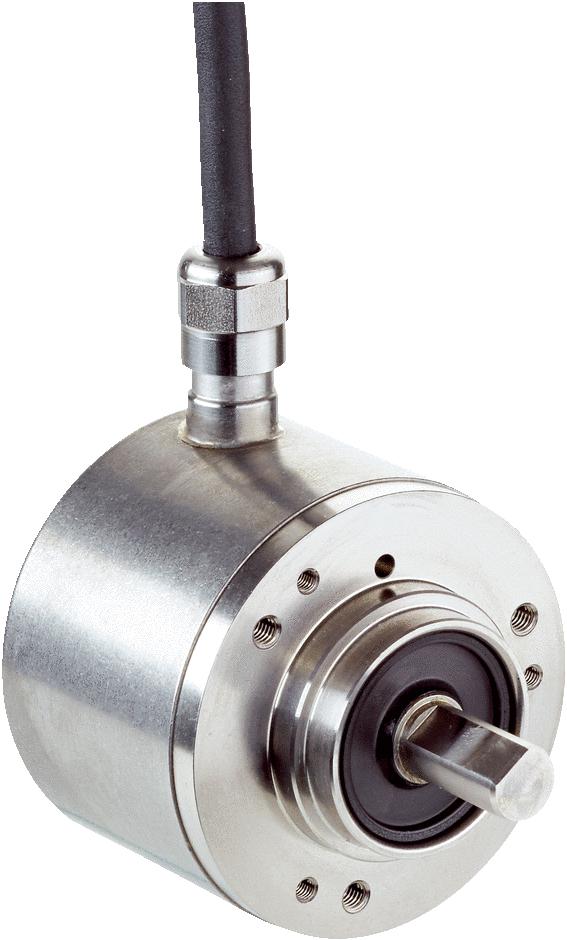

| Cable | ∅7 mm, 6 x 2 x 0.14 mm , 1 m |
| Vibration resistance | DIN EN 60068-2-6, 20 , 10 ... 2000 Hz |
| Connector | type 9416 (M23), 12-pin, type 9416L (M23), 12-pin |
| Input type | Selection of counting direction (cw/ccw) |
| Switch-on delay | < 10 ms |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
| Combination 1 | Housing: aluminum Flange: aluminum Shaft: stainless steel |
| Rotational speed | max. 3000 min |
| Moment of inertia | 30 gcm |
| Starting torque | < 3 Ncm |
| Shock resistance | DIN EN 60068-2-27, 100 , 6 ms |
| Operating temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Input current | < 6 mA |
| Detection type | photoelectric sampling |
| Angle offset | ± 0.9 ° |
| Axial offset | static: ± 0.3 mm, dynamic: ± 0.1 mm |

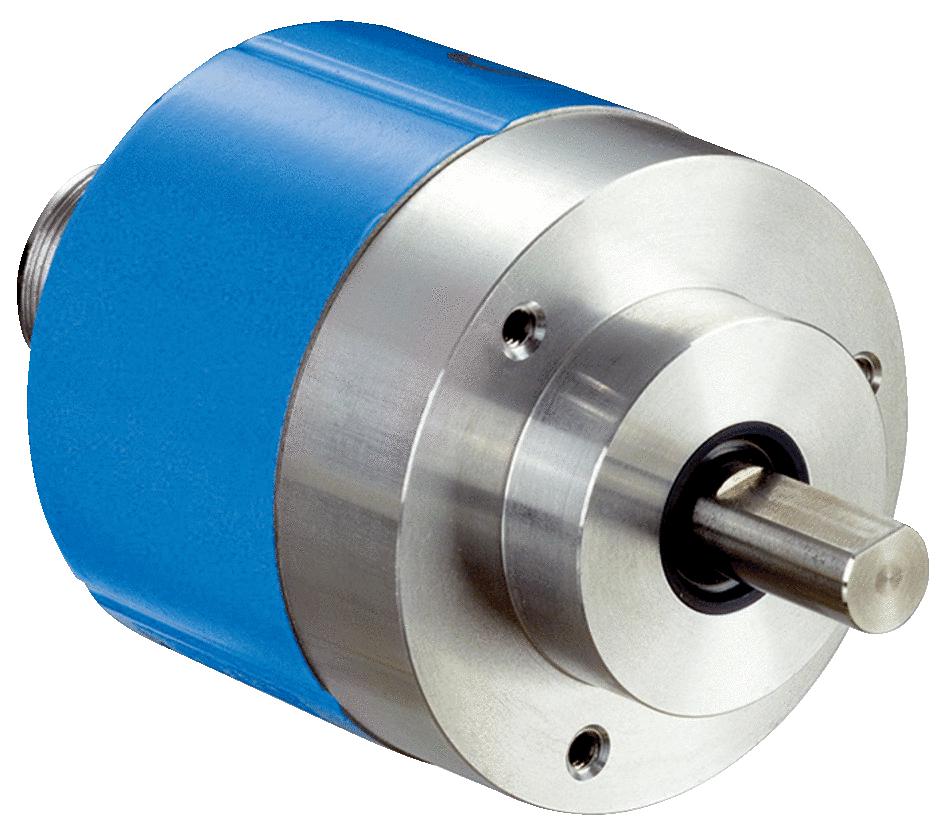

| Device type | Multiturn absolute encoder |
| Output code | Gray code, binary code |
| Code course (counting direction) | cw descending (clockwise rotation, code course descending) |
| Standard conformity | RS 422 |
| High | 4.5 ... 30 V |
| Low | 0 ... 2 V |
| Single turn | up to 16 Bit |
| Multiturn | 14 Bit |
| Overall resolution | up to 30 Bit |
| Monoflop time | 20 ± 10 µs |
| Radial offset | static: ± 0.5 mm, dynamic: ± 0.2 mm |
| Linearity | ± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit |
| Тип исполнения энкодера | Многооборотный |
