| Параметр | Значение |
| Общие характеристики | |
| Артикул | 31636 |
| MTTF | 80 a |
| Mission Time (T | 20 a |
| Diagnostic Coverage (DC) | 0 % |
| Operating voltage | 10 ... 30 V DC |
| UL approval | cULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Degree of protection | DIN EN 60529 , shaft side: IP64 housing side: IP65 |
| Mass | approx. 550 g |
| Interface type | PROFIBUS |
| Transfer rate | 0.0096 ... 12 MBit/s |
| Vibration resistance | DIN EN 60068-2-6, 10 , 10 ... 2000 Hz |
| Tightening torque, fastening screws | max. 1.8 Nm |
| Climatic testing | DIN EN 60068-2-30 , no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
| Combination 1 | housing: powder coated aluminum flange: aluminum shaft: stainless steel |
| Rotational speed | max. 6000 min |
| Moment of inertia | 30 gcm |
| Starting torque | ≤ 3 Ncm |
| Shock resistance | DIN EN 60068-2-27, 100 , 6 ms |
| Certificate | PF 19 CERT 5194 X |
| Directive 2014/34/EU | EN 60079-0:2012+A11:2013 , EN 60079-15:2010 , EN 60079-31:2014 |
| Operating temperature | -30 ... 55 °C (-22 ... 131 °F) |
| ATEX marking | II 3G Ex nA IIB T4 Gc X II 3D Ex tc IIIC T120°C Dc X |
| Current consumption | max. 230 mA at 10 V DC, max. 100 mA at 24 V DC |
| L | 1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load |
| UL File Number | E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. |
| Detection type | photoelectric sampling |
| Angle offset | ± 0.9 ° |
| Axial offset | static: ± 0.3 mm, dynamic: ± 0.1 mm |

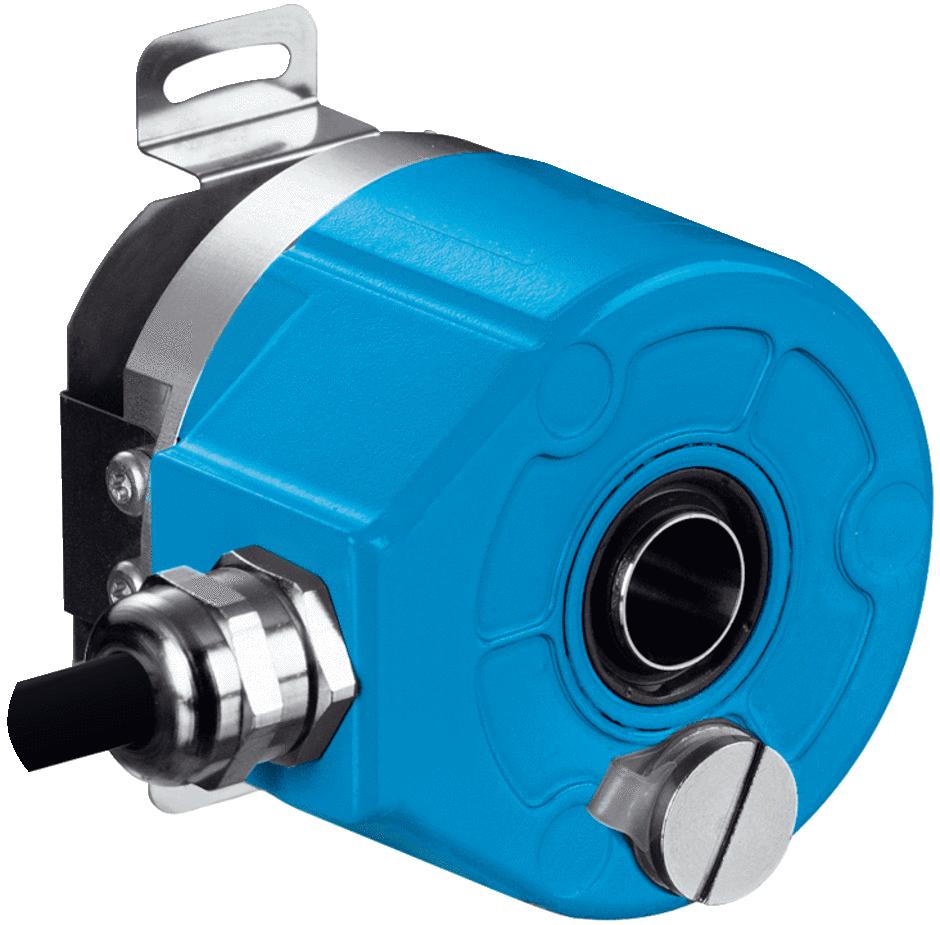

| Device type | Singleturn absolute encoder |
| Output code | binary code |
| Code course (counting direction) | programmable, cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending) |
| Standard conformity | PNO profile 3.062, RS-485 |
| Terminal compartment | in removable housing cover |
| Single turn | up to 16 Bit |
| Overall resolution | up to 16 Bit |
| Radial offset | static: ± 0.5 mm, dynamic: ± 0.2 mm |
| Linearity | ± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit |
| Тип исполнения энкодера | Однооборотный |
